Material | Advantage | Hradness(HRC) | Yielding (Map) | Tensile(Map) | Enlongation(%) | Impact(J/cm²) |
HRC42-48 | Perfit on welding | 42-48 | ≥ 850 | ≥1400 | ≥8 | ≥40(25℃ KV) |
HRC46-52 | Good hardness | 46-52 | ≥1250 | ≥1500 | ≥7 | ≥40(25℃ KV) |
HRC30-40 | Good price | 30-40 | ≥355 | ≥600 | ≥16 | ≥39(25℃ KV) |
Part no | size(mm) | holes | Kgs/pc（kg） |
9W1875 | 465*254*30 | 6 | 25.6 |
9W1876 | 465*254*30 | 6 | 25.6 |
9W8874 | 465*254*25 | 6 | 20 |
9W8875 | 465*254*25 | 6 | 20 |
9W9014 | 498*203*25 | 6 | 18.3 |
9W9015 | 498*203*25 | 6 | 18.3 |
8E9900 | 441.5*203.5*25 | 6 | 17.3 |
8E9901 | 441.5*203.5*25 | 6 | 17.3 |
6Y4410 | 510*254*30 | 6 | 28.3 |

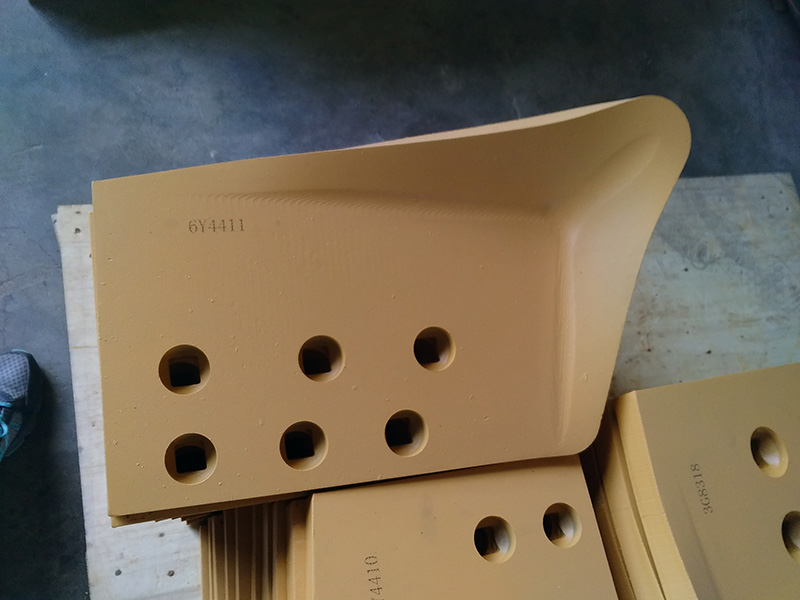

6Y4411 | 510*254*30 | 6 | 28.3 |
195-71-51630 | 622*330*40 | 7 | 60 |
195-71-51640 | 622*330*40 | 7 | 60 |
175-71-22271 | 630*254*35 | 7 | 42.1 |
175-71-22281 | 630*254*35 | 7 | 42.1 |
175-70-21126 | 492*254*35 | 7 | 32.2 |
175-70-21136 | 492*254*35 | 7 | 32.2 |
175-71-22272 | 540*254*40 | 7 | 39.6 |
175-71-22282 | 540*254*40 | 7 | 39.6 |
195-71-61930 | 765*393*50 | 8 | 111 |
195-71-61940 | 765*393*50 | 8 | 111 |
We are one of the famous manufacturer of Ground Engaging Tools spare parts in NINGBO,our products include grader blades,cutting edges,end bits,shank ripper,bucket tooth and adapter etc.which are suitable for many kinds of construction and mining machines like Excavator,Motor grader,Bulldozer,Scraper etc.
Surely,we are welcome to cooperate as customized service.
Send your inquiry / assessment to Us. Anything need us ,please don’t hesitate contact us here! we will keep it secret for you !
