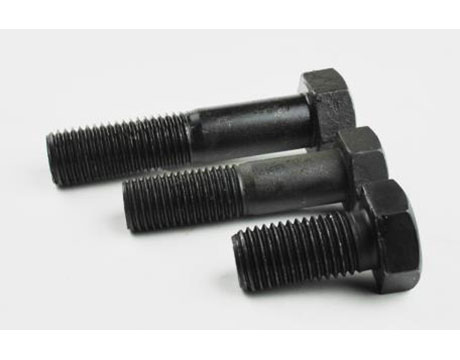

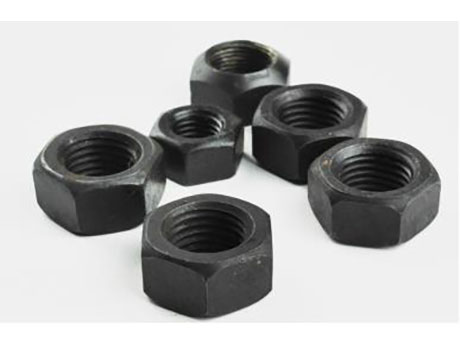

| Details | Bolt 3S8182 | Nut 7H3607 |
| Size | 5/8″UNF-18×47 B | 5/8″UNF-18(24X19) |
| Material | 40Cr, | C45 |
| Hardness | HRC36~42 | HRC28~36 |
| Grade | 10.9-12.9 | 10 |
| Surface | blacken | blacken |
| Models | Sprocket bolts for Caterpillar parts 561C, 561M, 561N, 943, 955H, 955K, 955L, 963, 963B, 963C, 963D, D4H, D4H XL, D4HTSK II, D4HTSK III, D5, D5B, D5E, D5M, D5N, D6C, D6D, D6E, D6E SR, D6G SR, D6K, D6K LGP, D6K | |
Part No | size |
9W9265 CR4791 | 1/2″UNF-20×40 B |
3S8182 | 5/8″UNF-18×47 B |
6V0937 CR4413 | 5/8″UNF-18×53 B |
3S0336 CR2070 | 3/4″UNF-16×61 B |
5P7665 | 3/4″UNF-16×64 B |
5P4130 CR4145 | 3/4″UNF-16X66 B |
9S2727 CR2621 | 7/8″UNF-14X65 B |
7T1248 CR2876 | 7/8″UNF-14X76 B |
9W8328 5P6471 CR4688 | 7/8″UNF-14X81 B |
5P0233 CR2985 | 1″UNF-14X77 B |
5p5442 CR3889 | 1″UNF-14X92 B |
7T1243 CR5674 | 1 1/8″UNFX105 B |
09203-11860 KM790 | M18X1.5X60 B |
154-27-12320 | M22X1.5X70 B |
155-27-12181 KM225 | M22X1.5X71 B |
178-27-11150 KM555 | M24X1.5X79 B |
195-27-12632/KM539 09203-14285 | M24X1.5X90 B |
195-27-33130 | M27X2.0X95 B |
198-27-32231 | M30X1.5X104 B |
8H5724 CR4896 | 1/2″UNF-20(19X15) |
7H3606 | 9/16″UNF-18(22X15) |
7H3607 AC228 | 5/8″UNF-18(24X19) |
7H3608 CR787 | 3/4″UNF-16(28X19) |
7H3609 CR1001 | 7/8″UNF-14(33X23) |
2M5656 CR1270 | 1″UNF-12(38X25) |
01823-01824 | M18X1.5(27X22) |
01803-02026 | M20x1.5(30X22) |
01803-02228 KM226 | M22X1.5(32X28) |
01803-02430 KM228 | M24X1.5(36X30) |
195-27-33141 KM1397 | M27X2.0(41X32) |
01803-03034 | M30X1.5(46X34) |
1D4635 | 1″UNC-8*63.5 |
1D4637 | 1″UNC-8*82.5 |
3R2299 | 1-1/4*UNC-7*76.5 |
We are one of the famous manufacturer of Ground Engaging Tools spare parts in NINGBO,our products include grader blades,cutting edges,end bits,shank ripper,bucket tooth and adapter etc.which are suitable for many kinds of construction and mining machines like Excavator,Motor grader,Bulldozer,Scraper etc.
Surely,we are welcome to cooperate as customized service.
Send your inquiry / assessment to Us. Anything need us ,please don’t hesitate contact us here! we will keep it secret for you !
